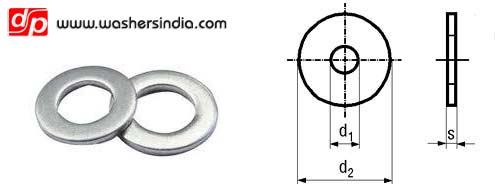

TECHNICAL DIAGRAM OF IS : 2016

IS : 2016

IS :2016

TECHNICAL DATA OF IS :2016

TYPE 'A' IS : 2016 TABLE II

MATERIAL : MILD STEEL

BOLT-SIZE
MM

INTERNAL - DIA MM

EXTERNAL - DIA MM

THICKNESS
MM

M1.6

1.8

4

0.4

M1.8

2.1

5

0.4

M2

2.4

5

0.4

M2.2

2.6

6

0.5

M2.5

2.9

6.5

0.5

M3

3.4

7

0.5

M3.5

4.0

8

0.5

M4

4.5

9

0.8

M4.5

5.0

10

1

M5

5.5

10

1

M6

6.6

12.5

1.6

M7

7.6

14

1.6

M8

9

17

1.6

M10

11

21

2

M12

14

24

2.5

M14

16

28

2.5

M16

18

30

3.15

M18

20

34

3.15

M20

22

37

3.15

M22

24

39

3.15

M24

26

44

4

M27

30

50

4

M30

33

56

4

M33

36

60

5

M36

39

66

5

M39

42

72

6

M42

45

78

6

M45

48

85

8

M48

52

92

8
